Stainless Steel Square Pipe Parameters
Equivalent Material of 201 Stainless Steel Tube
| Grade |
UNS No. |
Old British |
Euronorm |
China GB |
Japanese JIS |
| BS |
EN |
No. |
Name |
| 201 |
S201 |
201S15 |
58E |
1.4372 |
12Cr17Mn6Ni5N |
12Cr17Mn6Ni5N |
SUS201 |
201 Square Tube Composition and Mechanical Characteristics
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
| 201 |
Min.
Max. |
/
0.15 |
5.5
7.5 |
/
1.0 |
/
0.06 |
/
0.030 |
16.00
18.00 |
/ |
3.50
5.50 |
/
0.25 |
| Grade |
Tensile Strength
(MPa) |
Yield Strength
0.2% Proof (MPa) |
Elongation
(% in 50mm) |
Hardness |
Rockwell B
(HR B) |
Brinell
(HB) |
| 201 |
520 |
275 |
55 |
183 |
201 |

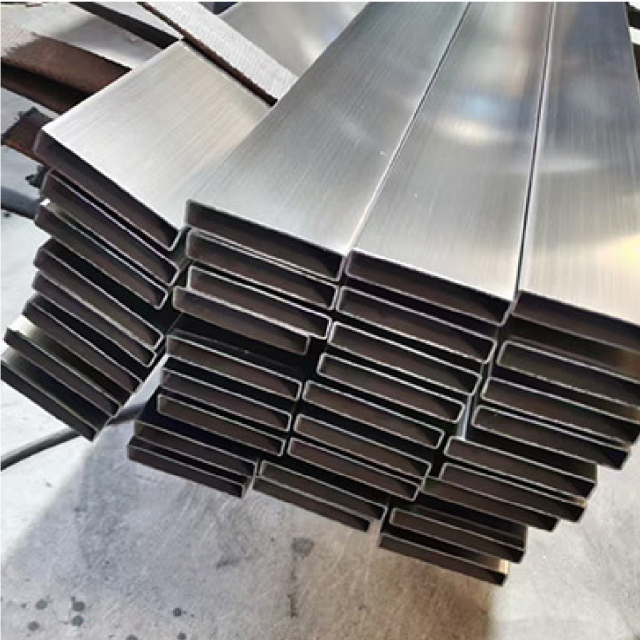

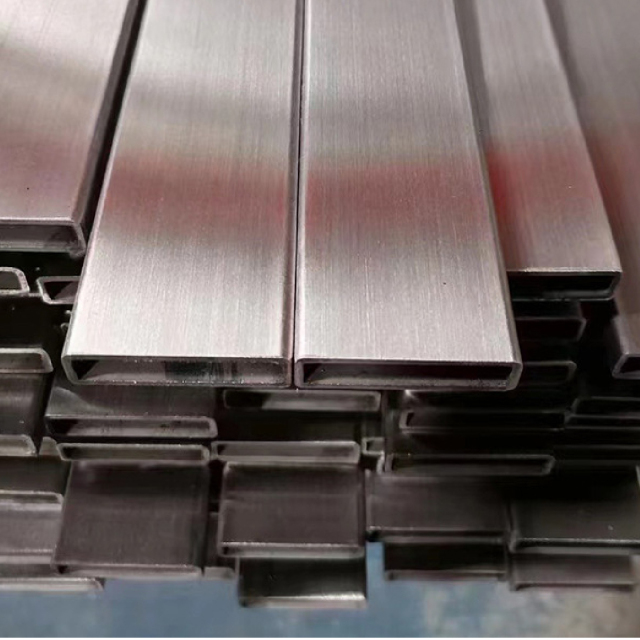

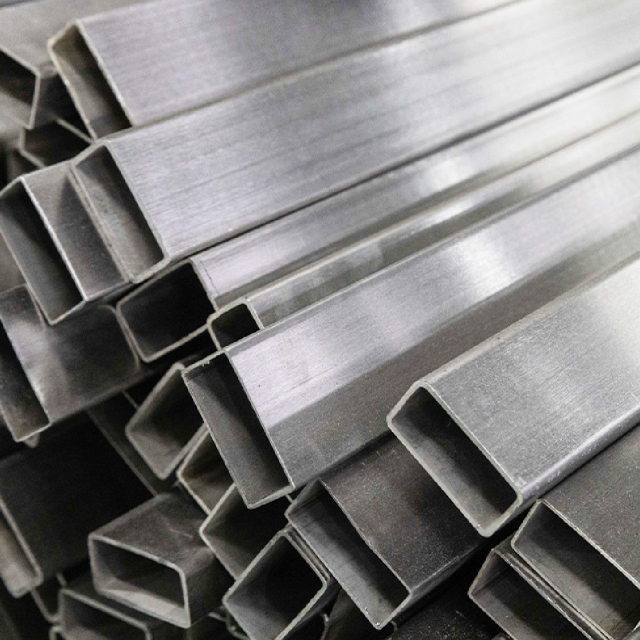

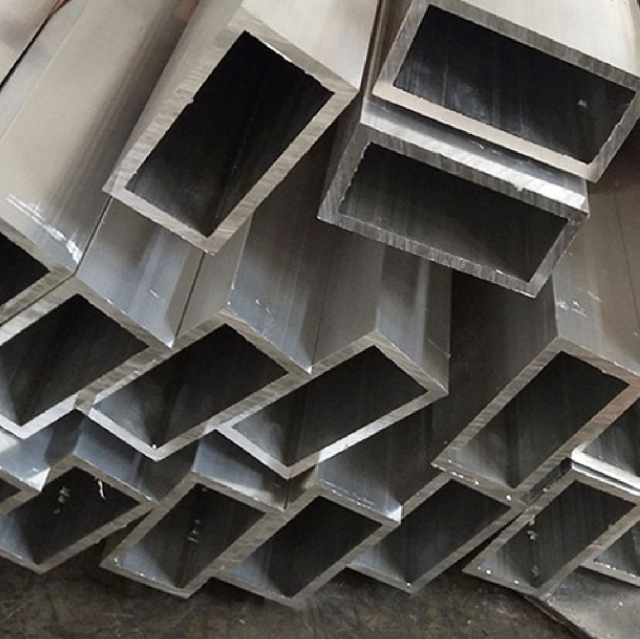

201 Stainless Steel Square Pipe Display
201 stainless steel square pipe is a stainless steel pipe with a square cross-section and has specific material composition and performance characteristics.
Performance characteristics of 201 stainless steel square tube
Corrosion resistance: 201 stainless steel square pipe has certain corrosion resistance and is suitable for general atmospheric environment, fresh water environment and some medium with low chemical corrosion degree.
Strength: The tensile strength of 201 stainless steel square tube is generally between 450MPa-650MPa, and the yield strength is generally between 200MPa-300MPa, indicating that it has certain mechanical strength.
Plasticity: The elongation of 201 stainless steel square pipe is generally between 30%-55%, indicating that 201 stainless steel square pipe has good plasticity and toughness.
Hardness: The hardness of 201 stainless steel square pipe is usually between HB180-HB253, with certain wear resistance and deformation resistance.

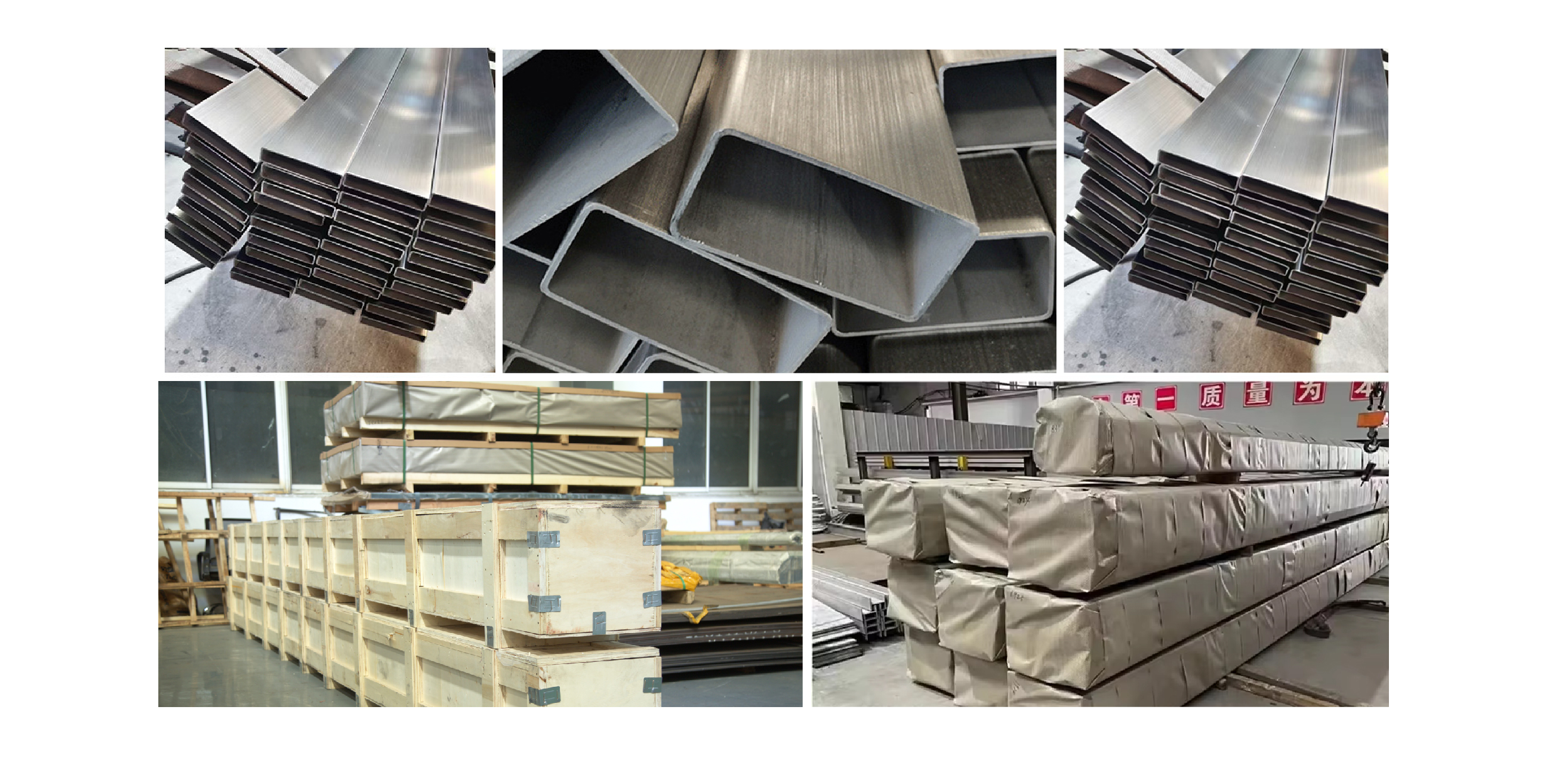

201 Stainless Steel Square Pipe Packing
Generally speaking, the packaging methods of 201 stainless steel square tubes usually include the following:Nude packaging: This is the simplest method, suitable for short-distance transportation or occasions with low packaging requirements. Place the square tube directly on the transport vehicle without additional packaging.Bundling packaging: Use steel strips, steel wires or other non-metallic materials to bundle the square tubes together. This packaging method can effectively prevent the tubes from scattering during transportation.Wooden frame packaging: Place the square tubes in a wooden frame and then fix them with screws or other fixings. This method is suitable for long-distance transportation and can better protect the tubes from damage.Plastic packaging: Use plastic film or plastic bags to package the tubes, which can be moisture-proof and dust-proof, and is suitable for occasions with special requirements for environmental conditions.Carton packaging: For small-sized or precision tubes, cartons can be used for packaging to provide additional protection.
201 Stainless Steel Square Pipe Transportations
201 Stainless Steel Square Pipe Applications
Due to its relatively low cost, 201 stainless steel square pipe is often used in situations where corrosion resistance is not particularly high, such as architectural decoration, manufacturing, and some shallow-stretched products.
FAQ
Q: Where are you? Can I visit you?
A: Of course, we are in Wuxi, Jiangsu, China. You are welcome to visit our factory at any time.
Q: What are your strengths?
A: Honest enterprise, competitive prices and professional export process services.
Q: What payment methods does your company support?
A: T/T, cash, Western Union are all accepted, if you have other payments, please contact me.
Q: What is the average delivery time?
A: For samples, the delivery time is about 5-7 days.
For mass production, the delivery time is 10-25 days. In any case, we will try our best to meet your needs.
Q: What is the minimum order quantity?
A: If you want to order a small number of orders or trial orders, please feel free to contact us, we can meet your requirements.
